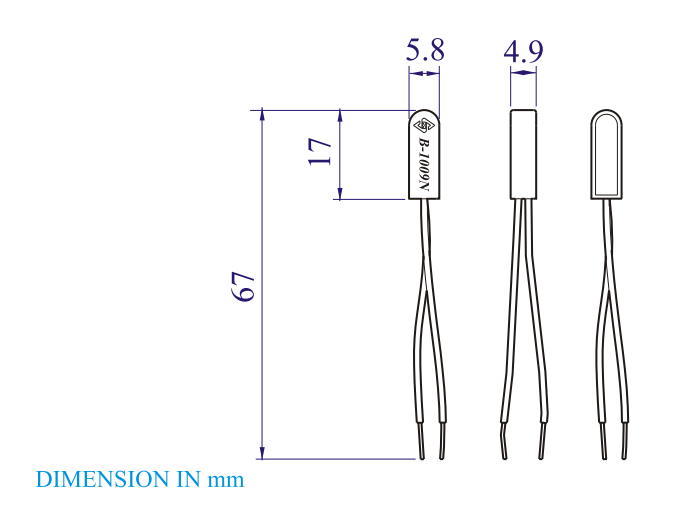

B-1009N(KSD)


Temperature Range: 45 - 140℃ (AT NO LOAD).

Operating Tolerance: ±5℃.

Reset Differential: 5℃- 50℃.

Input Power: 12/24 VDC / 125/250 VAC

Contacts Type: Normally Close / Normally Open.

Dielectric Strength: 1500 VAC / 1 Minute .

Lead Wire: AWG # 22 X 50 mm

Housing Material: Polyamide

Features: Waterproof / Small Size  / Short Current Fast Action

Reset: Auto Reset.
